The Diamond DA40
A modern 4-seat aircraft built for efficiency, safety, and travel
DA40s for Sale Watch Videos
The Diamond DA40
A modern 4-seat aircraft built for efficiency, safety, and travel
DA40s for Sale. Watch Videos.
Why Pilots Love the DA40
The Diamond DA40 has built a loyal following because it offers something rare in general aviation, a balance of performance, efficiency, and safety that appeals to both new and experienced pilots. With fuel burns as low as 5 gallons per hour, modern Garmin G1000 avionics, and excellent visibility from its bubble canopy, the DA40 makes every flight feel modern and approachable.
Add in one of the strongest safety records in its class, and it’s easy to see why so many owners call it their favorite four-seat aircraft.
Diamond DA40 Specs
Performance numbers and key features that set the DA40 apart from other four-seat aircraft.
5.1 gal/hr fuel burn
Consumption at 60% (19.5 I/h)
Austro Engine AE 300 turbocharged engine
155 kts max speed
(14,000 ft, MCP)
58 kts stall speed, landing configuration
16,400 ft service ceiling
Max operating altitude
690 ft/min max rate of climb (ISA SL)
940 nm max range
Includes auxiliary tanks which are standard in the USA
5.1 US gal/hr fuel consumption at max range
4 seat capacity

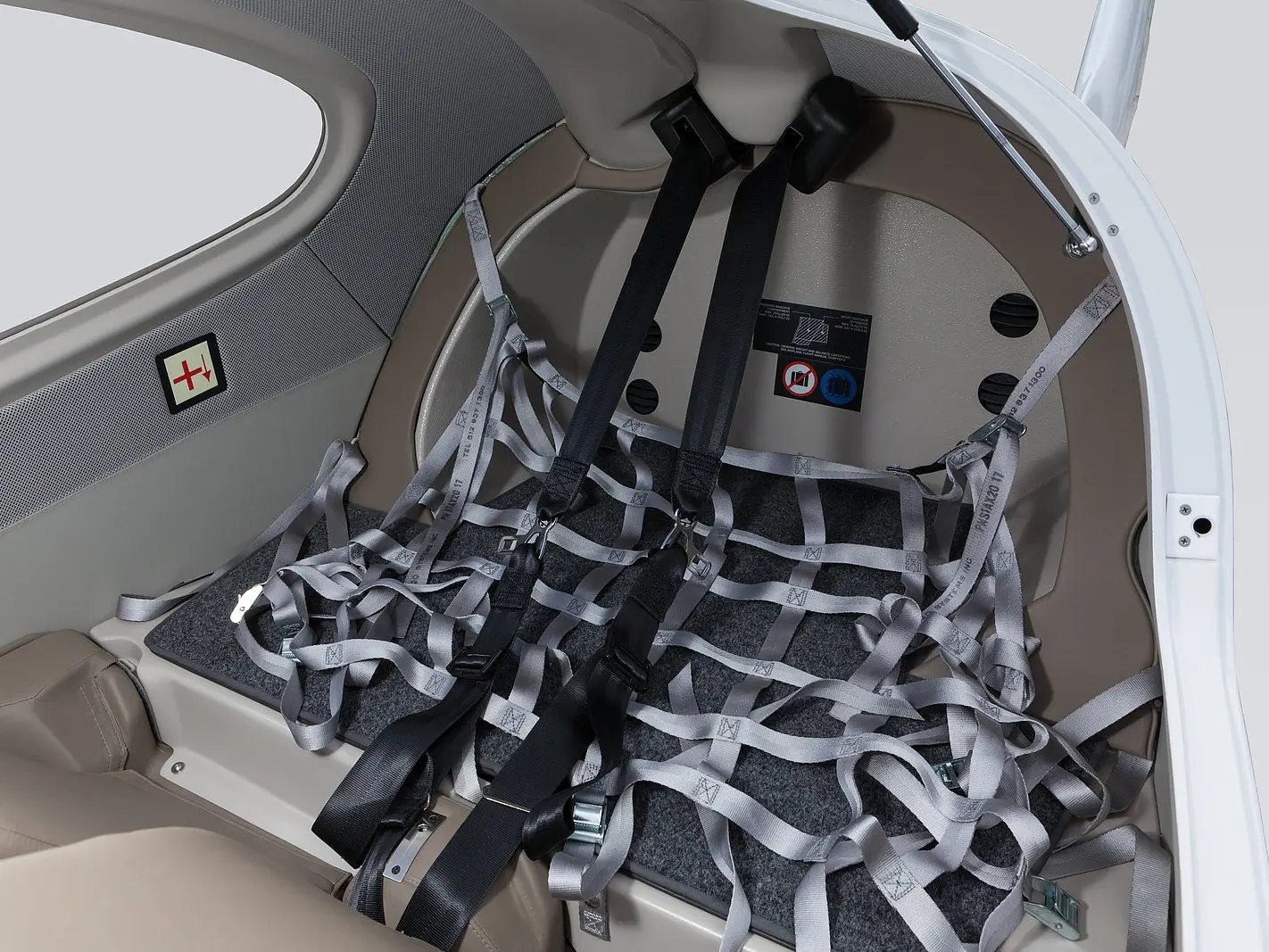

The folding rear seat backs, large forward opening canopy, and huge rear door offers the optimum in loading flexibility
904 lbs useful load
Fly fishing rods, guns, tents, skis, snowshoes, even mountain bikes, and plenty more gear all fit the DA40
Diamond DA40 Specs
Performance numbers and key features that set the DA40 apart from other four-seat aircraft.
5.1 gal/hr fuel burn
Consumption at 60% (19.5 I/h). Austro Engine AE 300 turbocharged engine.
155 kts max speed
Max Speed (14,000 ft).
58 kts stall speed, landing configuration.
16,400 ft service ceiling
Max operating altitude.
690 ft/min max rate of climb (ISA SL).
940 nm max range
5.1 US gal/hr fuel consumption at max range.
4 seat capacity
Folding rear seat backs, large forward opening canopy, and huge rear door.
904 lbs useful load
Fly fishing rods, guns, tents, skis, snowshoes, even mountain bikes fit in the DA40.
The Ultimate Diamond DA40 NG Guide
Every detail you need to know before flying. If you're intrigued by personal aircraft, take a closer look at the DA40 NG, a standout in the DA40 series known for its innovations and safety.
DA40 NG Demo Flight
Experience a full virtual Diamond DA40 NG Demo flight with LifeStyle Aviation's demo pilot Sam Linton.
Learn the ins and outs of the aircraft, how it performs in flight, and what makes the Jet-A burning DA40 NG a superior plane for travel and training.
Explore the DA40 History
Chronology of Major Improvements over the past two decades complied into a 54 minute detailed video and PDF document with time codes.
Explore the DA40 History
Chronology of Major Improvements over the past two decades complied into a 54 minute detailed video and PDF document with time codes.
DA40 Market: Curious about pricing?
See our live DA40 for sale listings for real-time market prices.

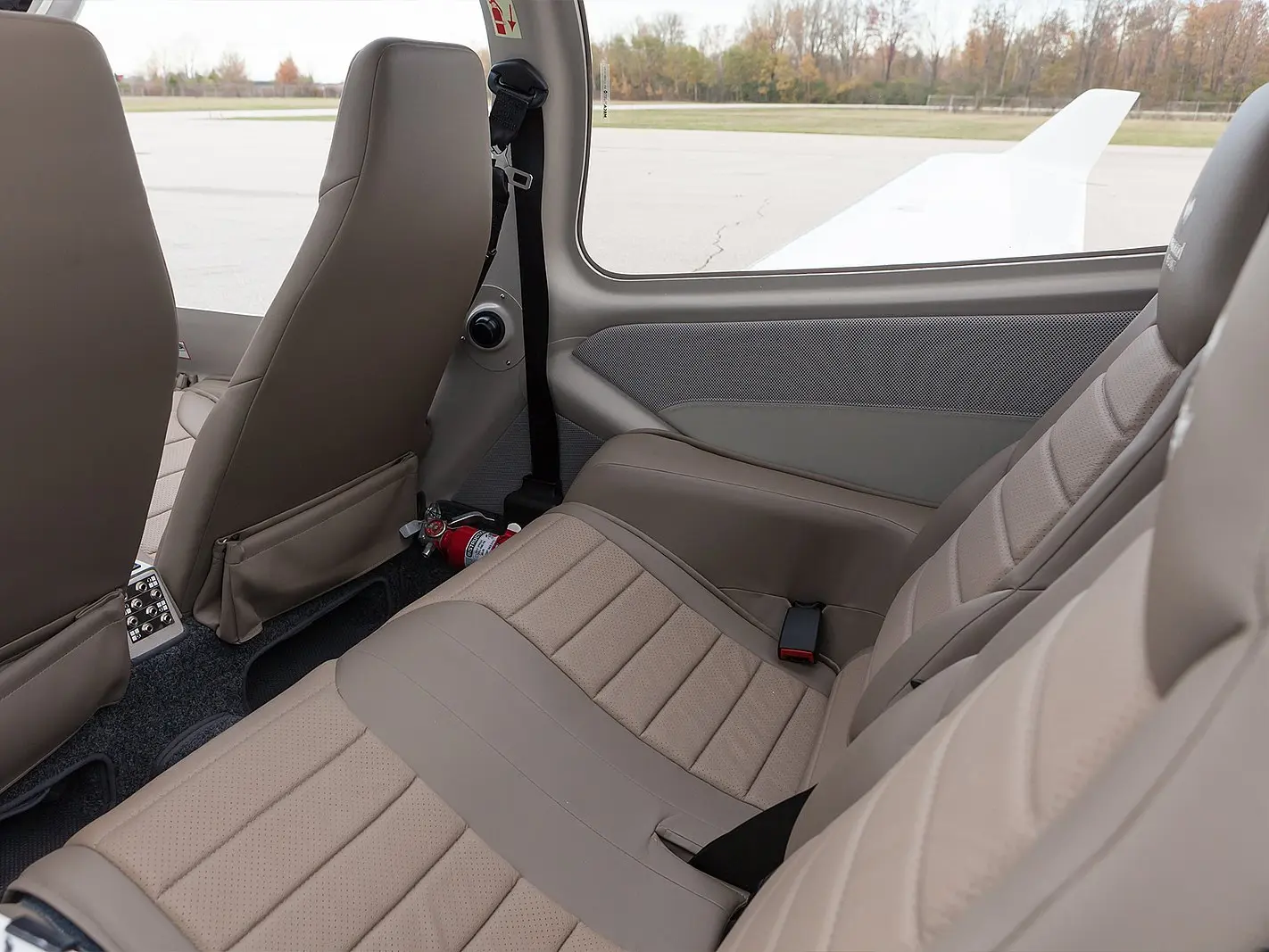

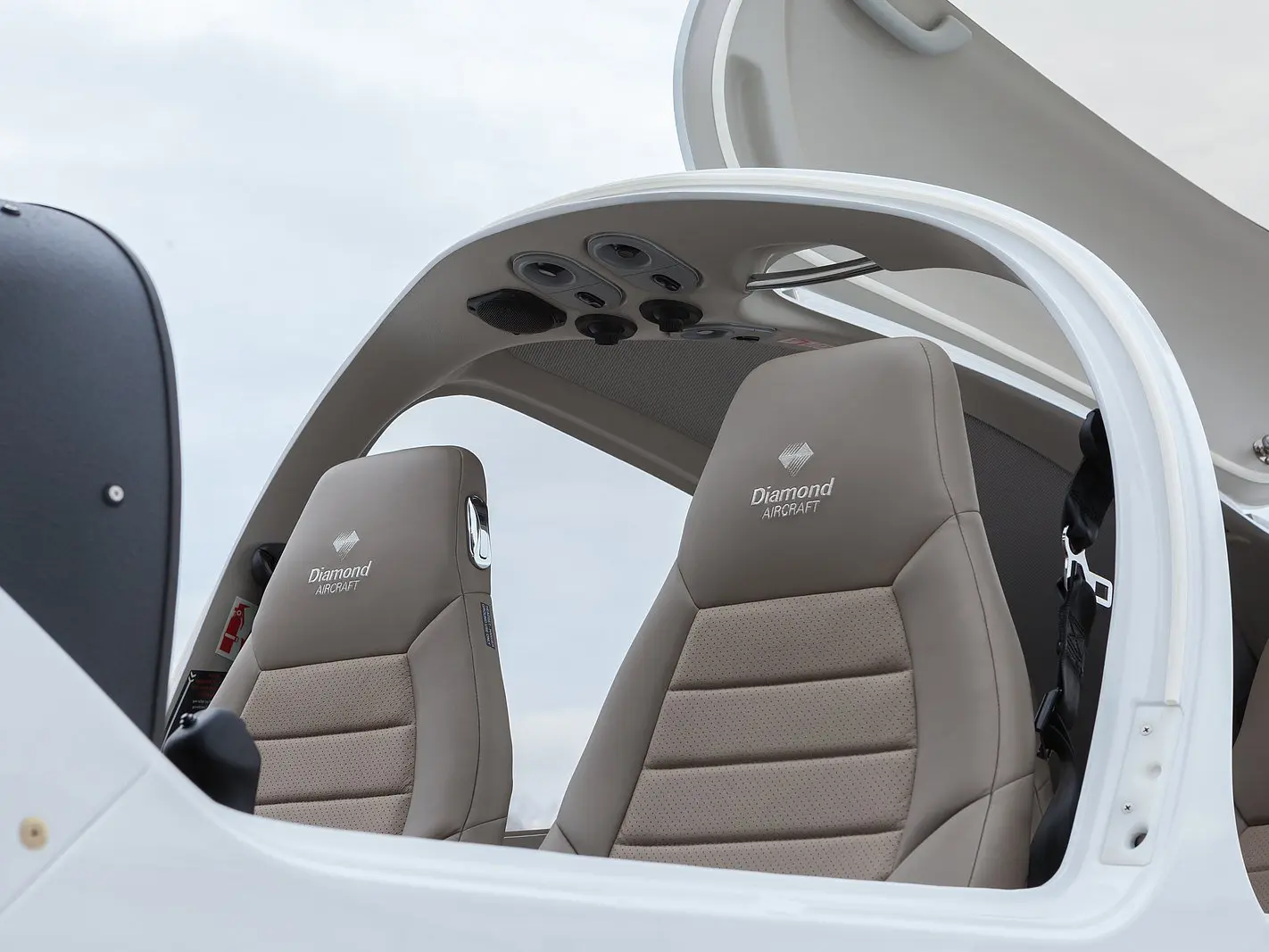

Design and Comfort
The DA40 NG comes standard with a choice of stylish and hard-wearing interior materials.
For luxurious comfort and style, available features include premium leather interiors in several designs and colors, adjustable pilot seat-backs and lumbar support, electrically adjustable rudder pedals, electric air conditioning, and much more.
Safety Record and Features
Diamond’s industry-leading safety record is the result of our commitment to protecting you and your passengers with a long list of active and passive safety features.
Active safety features help to avoid accidents in the first place, the first and most important line of defense. Passive safety features are designed to minimize the probability and degree of injury, just in case the unexpected happens.
The DA40 offers the ultimate in handling, stability and control, ease of operation plus structural and system redundancies, all coupled with a high degree of crashworthiness.
Diamond DA40 NG vs XLT – Engine Options and Differences
The DA40 fully integrated G1000 NXi flight deck, incorporating the latest features with optional ultra-precise GFC700 Automatic Flight Control System, offers superior situational awareness, convenience and safety. Available equipment provides Traffic Advisories, Synthetic Vision Technology, Satellite WX and Entertainment, and more.

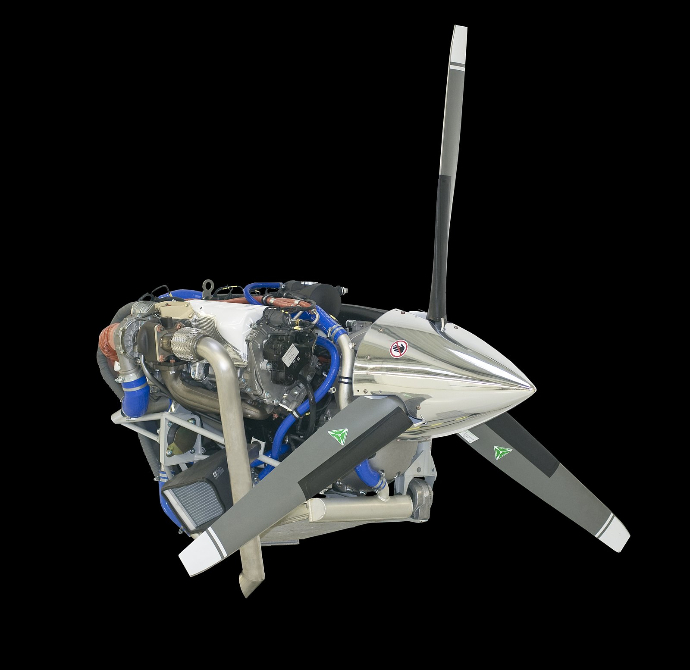

For your DA40 you can choose between the 168 hp turbocharged AE300 jet fuel engine or a Lycoming IO360M1A AVGAS engine (DA40 XLT version).
The 3 blade MT hydraulic constant speed propeller features advanced blade geometry for efficient performance, low vibration and noise. It is automatically controlled by the engine’s digital engine control through a conventional hydraulic governor.
Explore the Entire Diamond Family
Learn about the history of Diamond Aircraft, the differences between each model, and what makes Diamonds the safest general aviation airplanes in the world today!
Frequently Asked Questions
DA40 comes in Lycoming-powered versions (DA40-180/XL/XLS/XLT), the diesel DA40 NG (Austro AE300 on Jet-A), the earlier diesel DA40 TDI, and the trainer-focused DA40 F/FP. There’s also a rugged Tundra variant.
New 2026 DA40 NGs typically land around the low $700Ks. Used DA40s range widely, roughly mid-$200Ks to $600K+ depending on year, hours, avionics, and engine.
Plan on ~125–135 KTAS in economy cruise. Max cruise can reach the 140s–150s knots depending on model, power, and altitude.
Up to ~900–940 nm at economy settings with long-range fuel. Most owners plan ~700–800 nm with reserves.
Expect roughly 5–7 gph on the diesel NG at economy cruise, or ~7–9 gph on Lycoming models when run lean. That’s excellent for a 4-seat traveler.
Service ceiling is 16,400 ft. (Bring oxygen above 12,500 ft.)
Most do. Newer aircraft often have the Garmin GFC 700 integrated with G1000 NXi; older G1000s commonly use a KAP-140.
Yes, it is stable, forgiving, great visibility, and very friendly stall behavior. Ground handling uses a free-castering nosewheel (differential brakes), which is quick to learn.
It’s known for an outstanding safety record thanks to benign handling and a strong composite safety cell with crash-worthy fuel systems.
No airframe parachute. Diamond prioritizes inherent safety (handling, structure, fuel protection) instead of a chute.
Typically ~850–900 lbs, depending on equipment. With 40-50 gal fuel aboard (~300 lbs), figure ~550–600 lbs for people/bags.
Fuel & maintenance reserves often pencil out around ~$90–$120/hr for owners (variable costs). Rental/club rates vary by region.
The DA40 is faster, more efficient, and more modern (glass panel, composite). The 172 is simpler and ubiquitous, great for primary training. Both are solid; DA40 shines for cross-country.
Max speed: up to ~155 kt • Range: up to ~940 nm • Ceiling: 16,400 ft • Seats: 4 • Useful load: ~900 lbs.
XLT: Lycoming/avgas, slightly faster climb up to 5,000 ft, classic sound.
NG: Austro diesel on Jet-A, lower fuel burn, FADEC single-lever control, great high-altitude efficiency.
Powerplant
| DA40 NG |
DA40 XLT |
|
|---|---|---|
|
Engine |
Austro Engine AE 300 turbocharged common-rail injected 2.0 liter diesel engine with 168 hp and EECU single lever control system |
180 hp Lycoming IO360M1A AVGAS Piston Engine |
|
Propeller |
MT propeller MTV-6-R-/190-69 3-blade constant speed propeller |
Hartzell 2 blade metal constant speed propeller. Optional Hartzell 2 blade composite constant speed propeller. Optional MT 3 blade constant speed propeller |
|
Fuel grades |
Jet A-1, Jet A, TS-1 (Russia, Ukraine), RT (Russia, Ukraine), No. 3 Jet Fuel (China), JP-8 |
AVGAS |
Performance (max. mass)
| DA40 NG |
DA40 XLT |
|||
|---|---|---|---|---|
|
Max. speed (14,000 ft, MCP) |
285 km/h TAS1 | 154 kts TAS1 | 263 km/h TAS |
142 kts TAS |
|
Cruise speed at 60 % (14,000 ft) |
231 km/h TAS1 | 125 kts TAS1 | – |
– |
|
Cruise speed at 75 % (6,000 ft) |
– | – | ||
|
Stall speed, landing configuration |
107 km/h CAS | 58 kts CAS | 96 km/h IAS | 52 kts IAS |
|
Rate of climb (ISA SL) |
3.5 m/s1 | 690 ft/min1 | 4.6 m/s |
910 ft/min |
|
Range at 60 % (incl. auxiliary tank) |
1,741 km1 | 940 nm1 | – |
– |
|
Range at 45 % (incl. auxiliary tank) |
– | – | 1,537 km |
830 nm |
|
Fuel consumption |
19.5 l/h (@60%) |
5.1 US gal/h (@60%) |
31 lt/h (@65%) |
8.2 US gal/h (@65%) |
|
Take-off ground roll (ISA SL) |
370 m1 |
1,214 ft1 | 305 m |
1,000 ft |
|
Landing ground roll (ISA SL) |
270 m | 886 ft | 305 m |
1,000 ft |
|
Max. operating altitude |
5,000 m | 16,400 ft | 5,000 m |
16,400 ft |
|
Max. demonstrated crosswind |
46 km/h |
25 kts |
37 km/h |
20 kts |
Dimensions
Mass and Loading
| DA40 NG | DA40 XLT | |||
|---|---|---|---|---|
|
Seats |
4 | 4 | 4 | 4 |
|
Empty weight |
900 kg1 | 1,984 lbs1 | 792 kg2 |
1,746 lbs2 |
|
Useful load |
410 kg1 | 904 lbs1 | 408 kg2 |
900 lbs2 |
|
Max. take off mass |
1,310 kg | 2,888 lbs | 1,200 kg |
2,646 lbs |
|
Fuel capacity total
|
147 l / 118 kg 106 l / 84 kg 41 l / 33 kg |
39 US gal / 261 lbs 28 US gal / 188 lbs 11 US gal / 74 lbs |
189 l / 136 kg – – |
50 US gal / 301 lbs |
